Main Features

Automatic feeding, cutting sealing and printing: You only need to set up the length and quantity of the paper-plastic pouches as per the requirements and start the program, then the machine will automatically feed, cut, seal the pouches and print out all the selected parameters in Chinese or English;

Multi-purpose machine: Cutting, sealing and printing of paper-plastic pouches can be realized separately or at the same time to improve the working efficiency;

Adjustable sealing margin: Depending on whether printing is necessary to improve the utilization rate of the pouch rolls by adjusting the distance between the cutting and the sealing edges;

If necessary, several rolls of paper-plastic pouches with different widths could be loaded into the machine at the same time to improve its working efficiency by cutting off the edges simultaneously

7”color LCD capacitive touch screen with Android operation system, which features in graphical operation interface, single chip control system, in-built clock, and adjustable parameters settings and automatic storage with functions of voice reading, voice prompt and wireless Wife connection etc.

In-built color touch control screen can be used to set up or change the operation parameters with a variety of Chinese input methods of using optional scanning gun, and the printer will print out all the selected parameters

Temperature controlled by a microcomputer, accuracy ±1%, random setup of working temperature range 60~220℃;

High-speed increase of temperature: only 40 seconds required from ambient temperature to 180℃; high efficient and energy saving

Auxiliary temperature reduction design: The in-built microcomputer controlled temperature reducing device reduces the waiting time from high sealing temperature to lower sealing temperature;

Safe operation: If the sealing temperature outranges the setting range for more than ±4℃, the machine will automatically stop working, which effectively guarantees the seal quality and safety;

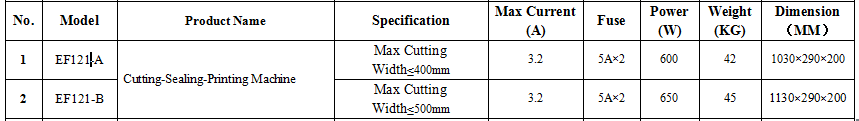

Technical Data

Control System7” color capacitive LCD touch screen

Sealing Speed10±0.5m/min

Sealing Width12mm

Cutting Length≥50mm

Sealing Margin:0~35mm adjustable

Working Temperature60~220℃ adjustable

Temperature Control Precision≤1%

Type of Printerneedle printer

Ambient Temperature10~40℃

AC Power Supply:110V/220V±10% 50Hz/60Hz
